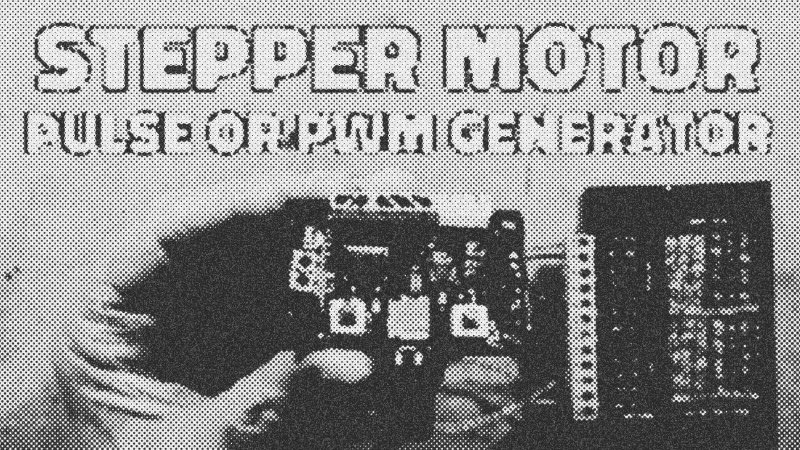

The Cheap Stepper Controller That Conceals a Mystery At first glance, a cheap AliExpress pulse generator looks like another throwaway toy. Designed to supply a variable-frequency stream of pulses to a stepper motor driver, this tiny board promises easy bench testing. It features basic direction and enable switches. Yet, beneath the matte-black solder resist lies an surprisingly complex circuit. This board bends a standard NE555 timer to its will, forcing it to pull double duty as both a frequency generator and a pulse-width modulation (PWM) controller. The Design Flaws of Budget Hardware Before praising its clever design, we must address its flaws. The board lacks a simple polarity protection diode at the power input. Budget hardware often cuts these essential safety corners. If you feed its 8-to-24V input backwards, you will instantly vaporize the input capacitor and possibly kill the onboard 7805 voltage regulator. On the positive side, the board does include a 500mA self-resetting PTC fuse to handle minor overcurrent issues downstream. Deciphering the Dual-Mode Circuitry Reverse-engineering this double-sided, black PCB reveals how the circuit alternates modes. In standard frequency mode, timing capacitors charge and discharge through a single variable resistor path, establishing a clean, adjustable pulse train. Flipping the jumper to PWM mode engages a clever diode network. The capacitors now charge through one diode and one half of a dual-ganged potentiometer, while discharging through a second diode and the opposing half. This changes the mark-space ratio without altering the baseline frequency, creating a classic PWM effect. Practical Implications for Bench Testing This inexpensive module is an excellent tool for quick motor bench tests, saving you from programming an Arduino just to spin a motor. The three-way jumper allows you to select from three different timing capacitor ranges (1nF, 10nF, and 68nF), letting you push a stepper motor from a slow crawl up to high-speed limits. However, the mystery remains: why include a PWM mode on a stepper controller when it has virtually no effect on stepper speed? This dual-mode design suggests the designers wanted a generic, multi-purpose timing platform suitable for other tasks, like basic servo control.
