Taco Turn conveyor technology optimizes warehouse footprints at MODEX

The invisible choreography of global logistics

When a package arrives at your doorstep, it is the final note in a complex, high-velocity symphony. The modern warehouse has transitioned from a static storage facility into a dynamic, multi-dimensional sorting engine. This evolution was on full display at MODEX, the premier expo for the Material Handling Industry. Behind the curtain of everyday commerce lies a world where engineering challenges—such as the singular movement of a box—are solved with profound mechanical elegance and algorithmic precision. To understand the universe, one must understand the flow of matter; in our modern civilization, that flow is dictated by the logistics of the warehouse.

Geometry of the Taco Turn and mechanical singulation

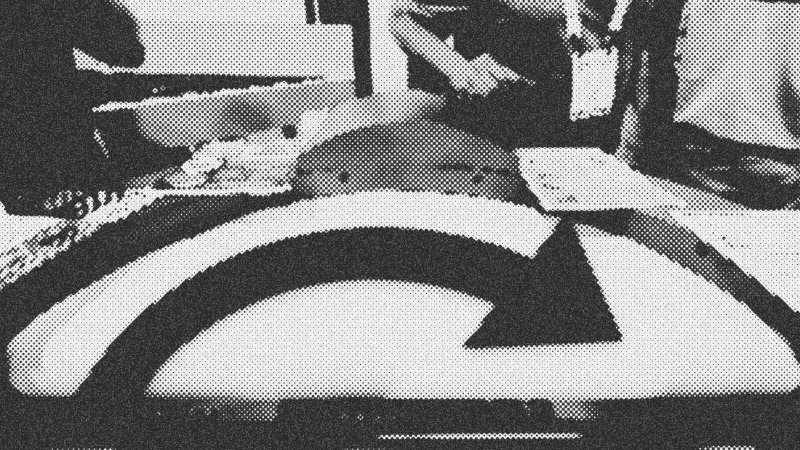

One of the most striking innovations in spatial optimization is the Taco Turn. Traditional conveyor systems often require vast amounts of floor space to redirect the flow of goods. The Taco Turn utilizes a hyperbolic paraboloid-inspired geometry, effectively folding the conveyor belt upon itself. By moving one side of the belt in one direction and the forward half in the opposite, the system achieves a 180-degree change in direction within a remarkably tight footprint. This is not merely a convenience; it is an application of advanced topology to maximize the density of industrial operations.

Coupled with these directional shifts is the necessity of singulation. In a warehouse environment, products often arrive in clusters, but sortation systems require individual spacing to function. Systems now use varying velocities across multiple conveyor segments to pull items apart. By accelerating a leading package relative to the one behind it, the system creates the discrete gaps necessary for Machine Vision cameras and robotic arms to identify and interact with individual units. It is a transformation of chaotic input into ordered, linear data.

Autonomous vision and the Gideon forklift

Robotics in the logistical space are moving away from the static, caged environments of the past toward true autonomy. The Gideon Forklift, specifically the TRL (Trailer Loading and Unloading) model, represents a leap in environmental awareness. Unlike traditional automated guided vehicles (AGVs) that rely on pre-set paths or QR Codes, this system utilizes sophisticated LiDAR and vision sensors to interpret its surroundings in real-time.

The true breakthrough lies in its ability to "cube out" a trailer. Loading a trailer is a high-stakes puzzle; the forklift must navigate varying slopes, identify disparate pallet types without markers, and adjust its forks dynamically to ensure a balanced pick. By using a 360-degree safety layer and dual-mast cameras, the Gideon system can place pallets perfectly against trailer walls, eliminating unused space and ensuring the structural integrity of the load. This level of variable handling was previously thought to be the exclusive domain of human intuition.

Software hierarchies and the Warehouse Execution System

The mechanical components of a warehouse are governed by a sophisticated hierarchy of digital logic. At the base level, Programmable Logic Controllers (PLCs) manage the millisecond-by-millisecond firing of solenoids and motors. However, the macro-coordination is handled by the Warehouse Execution System (WES) and the Warehouse Control System (WCS).

The WES acts as the "brain," maintaining a plant-wide schema of inventory and shipping deadlines. It communicates instructions to the WCS, which then manages specific hardware like the NPI Dual-Lane Extreme Sorter. These systems utilize sliding "shoes" or pucks to divert packages at high speeds toward their next destination. The integration of these layers allows a warehouse to function as a mechanical computer, where the "bits" are physical boxes being shifted through a physical processor.

Engineering the internals with the Drum Motor

Even the most basic component of logistics—the conveyor drive—has undergone a radical redesign for efficiency and sanitation. Traditional drives feature external motors and gearboxes that are prone to corrosion and occupy valuable space. The Drum Motor addresses this by internalizing the motor, gearbox, and bearings within a sealed, oil-filled cylinder.

In industries such as food processing, sanitation is paramount. The Sanitary Series drum motors are constructed from stainless steel and rated to IP69K, allowing them to withstand 3,000 PSI washdowns. The design is so specialized that some models use a patented 3/4 Wound Stator, allowing for visual inspection of the internal rotor while maintaining torque. This unitized approach simplifies maintenance through "no-tools removal" systems, where square shafts allow the entire drive to be dropped out and replaced in minutes, minimizing the entropy of the system.

The future of the logistical frontier

The exploration of these technologies reveals a fundamental truth about human ingenuity: we are obsessed with the reduction of friction. Whether it is an Automatic Box Opener from Cassie Cornerstone Automation Systems that uses laser dimensioning to cut through cardboard without damaging contents, or Onshape's cloud-based CAD enabling global engineering collaboration, the goal is seamless flow.

As we look toward the future, the distinction between logistics and manufacturing will continue to blur. The warehouse is no longer a graveyard for goods; it is a high-speed laboratory where the laws of physics and the demands of commerce meet. The engineers who dedicate their lives to the "Taco Turn" or the "sliding shoe" are the cartographers of this new cosmic frontier, ensuring that the matter of our world reaches its destination with breathtaking efficiency.
