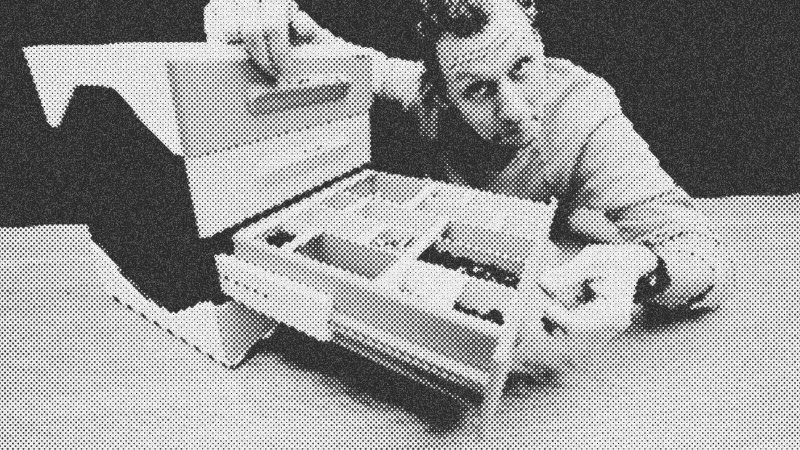

Fully 3D printed organizer cabinet cuts hardware out of the assembly equation

Most DIY projects stall at the procurement phase. You find a brilliant design for a storage unit, but the momentum dies when you realize you need specialized drawer slides, metric machine screws, or a specific grade of adhesive.

believes that the most effective organizational tools are the ones you can produce immediately with the resources already on your workbench. This project by

Alexander Chappel

eliminates the friction of traditional assembly by creating a modular cabinet system that relies exclusively on

3D printing

and raw filament.

The goal is a functional sanctuary created from a single material. By leveraging the unique capabilities of modern 3D printers, it is now possible to manufacture complex mechanical systems—like full-extension drawer slides—that previously required precision-engineered metal components. This approach doesn't just save a trip to the hardware store; it allows for a level of customization and modularity that mass-produced furniture simply cannot match.

Engineering precision without metal bearings

The most significant hurdle in a 100% 3D printed build is the drawer slide. Standard slides use steel ball bearings and sheet metal races to ensure smooth motion under load.

solved this by designing a custom bearing cage that uses printed, pill-shaped rollers. Unlike simple sliding plastic-on-plastic interfaces, these rollers maintain low friction even when the drawers are heavily loaded with metal hardware.

To achieve full extension—allowing the drawer to pull entirely out of the frame—the design uses a nested three-part rail system. The challenge with 3D printed tolerances is ensuring the parts are loose enough to move but tight enough to prevent wobbling. Chappel utilized "print-in-place" geometries for the bearing cages, a technique that allows multiple moving parts to be printed as a single unit. This reduces assembly complexity while ensuring that the rollers stay perfectly spaced within the track.

Tools and materials for the build

To recreate this organizational system, you need a very specific, limited inventory. The beauty of this design is the lack of a traditional "shopping list."

• 3D Printer: A standard 250mm cube printer (like a
  Bambu Lab X1
  or
  Bambu Lab A1
  ) is sufficient for the 4x4 grid version. Larger format printers allow for 5x5 configurations.
• Filament:
  PLA
  is recommended for its rigidity and ease of printing. Expect to use roughly 3-5 spools depending on the number of drawers and frame size.
• Design Files: Digital STL or STEP files from
  alch.shop
  .
• Filament Scraps: Short lengths of raw 1.75mm filament serve as the "keys" for the locking mechanisms.

Step-by-step assembly instructions

1. Print the Component Library: Begin by printing the drawer sides, fronts, and backs. Chappel recommends printing these as individual pieces rather than a single bucket to ensure the best surface finish and structural integrity.
2. Assemble the Drawers: Use the integrated locking tabs. The parts are designed to click together. If the fit is too tight, a light sanding on the tabs may be necessary, though the design aims for a tool-free snap fit.
3. Construct the Bearing Rails: Insert the printed roller cages into the slide rails. Ensure the movement is fluid before mounting them into the frame. If the bearings bind, Chappel suggests scaling the bearing prints up or down by 1% to account for your specific printer's accuracy.
4. Build the Outer Frame: The frame consists of corner posts, side panels, and connecting beams. These slide into one another.
5. Lock with Filament Pins: Locate the small holes at the joinery points. Insert a small piece of raw filament into these holes to lock the frame members together. This prevents the unit from vibrating apart during use but allows for easy disassembly if you need to move or expand the system.
6. Final Installation: Slide the completed drawers into the frame. Test the full extension to ensure the drawers clear the front handles.

Troubleshooting tolerances and load bearing

While this system is robust, 3D printed plastic has different failure points than wood or metal. If your drawers feel "sticky" once loaded with heavy items, check the alignment of your frame. Because the system is modular, any slight twist in the frame assembly will translate to the rails. Ensure the cabinet is sitting on a flat, level surface.

For those worried about the unit tipping when a drawer is fully extended, Chappel found that the mass of the remaining drawers usually acts as a sufficient counterbalance. However, if you are storing exceptionally heavy items like lead sinkers or large bolts, always open only one drawer at a time or consider 3D printing a small bracket to secure the unit to your desk.

The economics of printing vs. buying

At a price point of roughly $45 for a three-drawer unit, this project challenges the dominance of retail giants like

. While an

IKEA Alex

unit costs significantly more and uses drawers that don't fully extend, this 3D printed alternative offers superior access to your stored items. By eliminating the need for external hardware, you aren't just saving money—you are reclaiming the mental bandwidth usually spent on complicated assembly instructions and missing screws. This is a pragmatic, scalable solution for a truly customized workspace.
